8' L x 16" W Modular Step Deck Trailer Ramp System - 20,000 lb. Weight Capacity

$ 8,800.00

Brand Machinery Planet

Manufactured from high-strength, lightweight aluminum
Includes (4) 8' L x 16" W aluminum ramps with double pin-on ends, and (2) heavy-duty adjustable lower ramp support stands (18"-24")
20,000 lb. per axle weight capacity
Weighs 380 lbs.
Extra-wide serrated cross bars offer maximum traction in the rain, mud, or snow
Versatile and fully adjustable ramp system sets up in minutes

INCLUDE:

(4) 8‘ x 16“ aluminum ramps (2) Hanging HD Adjustable lower ramp support stands.

Pair of load leveler ramps only, (2) 20,000 lb per axle x 16” wide x 96“ long ramps w/pin ends.

Pair of 23,500 lb max axle hangable aluminum support stands, 20” wide (adjustable from 18-24“ high)

(4) Aluminum skid seat, 36” long, each

Pair of Heavy Duty Double Ramp Hanger Brackets for Hanging Two 5“ Thick Ramps

2 Right Hand Heavy Duty Double Ramp Hanger Bracket for Hanging Two 5” Thick Ramps

Left Hand Heavy Duty Double Ramp Hanger Bracket for Hanging Two 5“ Thick Ramps

Pair of aluminum support stand hangers for mounting in front of rear axle only (Q3057)

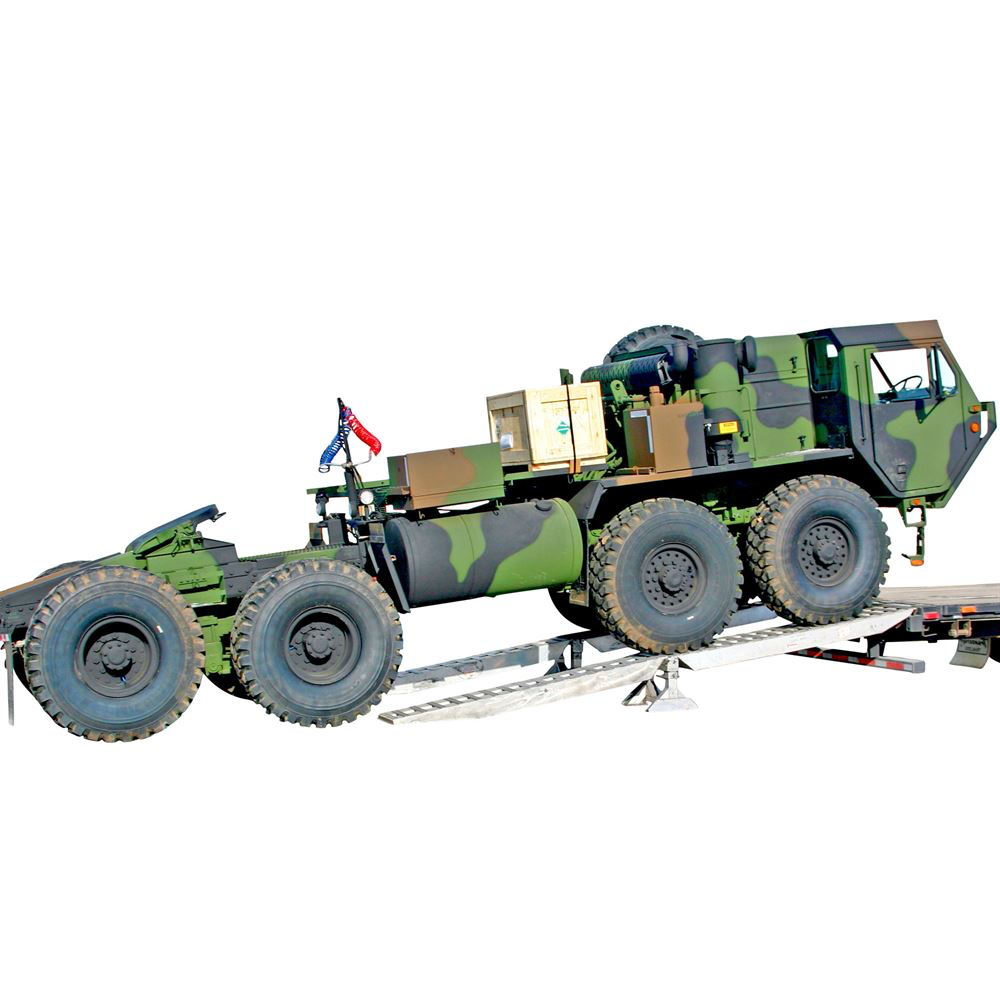

The step deck trailer ramp is the most versatile ramp system for loading tractors, loaders, trucks, and heavy equipment onto step deck trailers, loading docks, or flatbed trailers. These high-strength, lightweight aluminum ramps are easy to set up, and have a 20,000 lb. per axle weight capacity.

These heavy-duty ramps feature a reinforced stubbed toe so that they may be used as a modular system, or used as 8’ ramps on the rear of a trailer. The stubbed toe also prevents ramps from bending under the weight of heavy loads. This system breaks down into sections weighing just 74 lbs. each, allowing it to be set up quickly and easily by just one person.

The ramps pin to an adjustable center support stand and skid seat ramp bracket on the trailer or loading dock. The stands can change the loading angle onto trailers and docks by creating an offset angle or arch. The required skid seat brackets (sold separately) are available in steel or aluminum and must be welded or bolted to the trailer or loading dock. Consider purchasing brackets wider than your ramps so you can slide ramps in or out to accommodate different vehicles. Complete your ramp system by adding lockable ramp hangers and stand hangers (sold separately) to conveniently store your ramps and stands underneath your truck or trailer.

SPECIFICATIONS

Maximum Capacity 20,000 lbs. per axle

Length 16'

Width 16"

Height 6"

Weight 380 lbs.

Not recommended for trucks with mounted cranes, forklifts, or steel track vehicles. Never exceed the maximum axle capacity of this ramp system. Pin End Ramps must be pinned into skid seat brackets before using ramps. The best way to determine your vehicles axle weight is to drive the heaviest axle of the vehicle on a scale. Normally the front end of the truck is the heaviest axle weight because of the engine.
